SOLIND

Industrial Thermal Treatment system

Materials

Industry

Specifications

ITEM	SPECIFICATION
Configuration	5 Zone heating
IR lamp Heater	Max. 2,000 mm
Heater type	IR lamp Heater
Max. temperature	Max. 500℃
Cold Start Warm-Up Time	10 min.
Profile Change Time	5 min.
Belt type	stand-up mesh belt
Conveyor Speed	Dual Speed (13~80cm/min, 80~480cm/min) with toggle switch

ITEM	SPECIFICATION
Configuration	- Loader station - Multi-zone infrared middle temp. section - Multi-zone infrared high temp. section - Two stage cooling - Unloader station
Heater type	9 Zone heating
Maximum continuous operating temperature	- Middle temp. section – 500 deg. - High temp. section – 1000 deg.
Cross belt temperature uniformity and repeatability	± 2 deg.
Temperature ramping rate	Max. 200 deg./sec
Belt speed	26-300 ipm (66-762 cm/min)

DATA

DATA

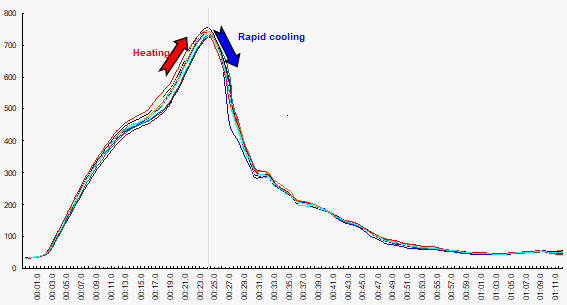

- Control firing process in silicon solar cell manufacturing process : fast heating & fast cooling

DATA

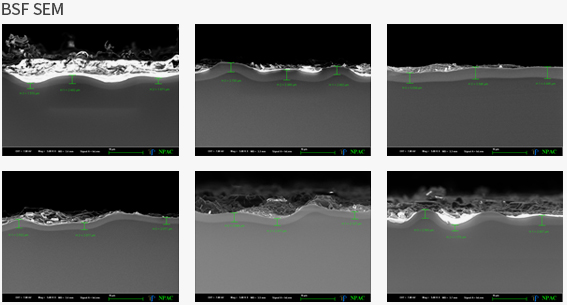

- Cross section SEM of back surface field (BSF) of silicon solar cell formed by firing process

DATA

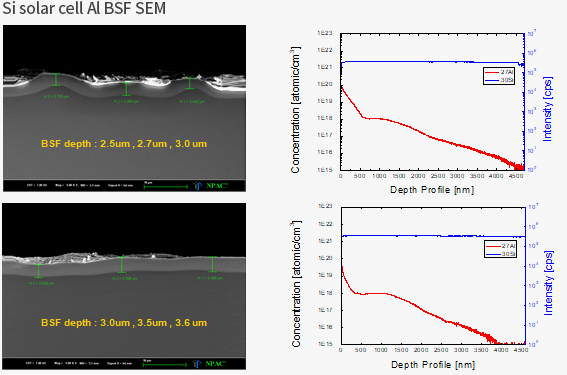

- Depth control of back surface field (BSF) of silicon solar cell

DATA

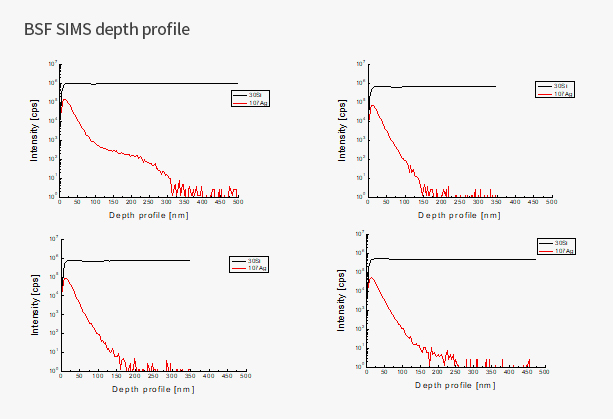

- Depth control of back surface field (BSF) of silicon solar cell
